Hydroxypropyl Methylcellulose (HPMC) are non-ionic cellulose ether & its derivatives  that have hyrdroxyl groups on the cellulose chain substituted for a methoxy or hydroxypropyl group. HPMC is made from natural cotton linter under chemical reaction,which can be dissolved in both cold water and hot water to form a transparent solution. HPMC is used as a thickener, binder, and film former in construction, pharmaceutical,food, cosmetic, detergent, paints, adhesives, inks, PVC and various other applications.CAS NO.:9004-65-3

Chemical Specification

Specification	HPMC E( 2910 )	HPMC F( 2906 )	HPMC K( 2208 )
Gel temperature (℃)	58-64	62-68	70-90
Methoxy (WT%)	28.0-30.0	27.0-30.0	19.0-24.0
Hydroxypropoxy (WT%)	7.0-12.0	4.0-7.5	4.0-12.0
Viscosity(cps, 2% Solution)	3, 5, 6, 15, 50, 100, 400,4000, 10000, 40000, 60000,100000,150000,200000



Pharmaceutical grade Hydroxypropyl Methylcellulose(HPMC)

Hydroxypropyl Methylcellulose (HPMC) Pharmaceutical Grade is Hypromellose pharmaceutical excipient and supplement,which can be used as thickener, dispersant, emulsifier and film-forming agent.

Pharma grade HPMC products are derived from natural refined cotton linter and wood pulp, meeting all the requirements of the USP, EP, JP, along with Kosher and Halal Certifications.Pharmaceutical grade HPMC is in compliance with FDA, EU and FAO/WHO guidelines, and is manufactured in accordance with GMP standard, retaining ISO9001 and ISO14001 certifications as well.

Pharma HPMC comes in diverse viscosity ranges from 3 to 200,000 cps, and it can be widely used for tablet coating, granulation, binder, thickener, stabilizer and making vegetable HPMC capsule.

1.Chemical Specification

Specification	E( 2910 )	F( 2906 )	K( 2208 )
Gel temperature (℃)	58-64	62-68	70-90
Methoxy (WT%)	28.0-30.0	27.0-30.0	19.0-24.0
Hydroxypropoxy (WT%)	7.0-12.0	4.0-7.5	4.0-12.0
Viscosity(cps, 2% Solution)	3, 5, 6, 15, 50, 100, 400,4000, 10000, 40000, 60000,100000,150000,200000



Product Grade:



Grade Name	Viscosity(cps)	Remark
HPMC E5	4.0-6.0	2910
HPMC E6	4.8-7.2
HPMC E15	12.0-18.0
HPMC E4M	3200-4800
HPMC F50	40-60	2906
HPMC K100	80-120	2208
HPMC K4M	3200-4800
HPMC K100M	80000-120000

3.Application

Pharma Grade HPMC enable the production of controlled-release formulations with the convenience of the most widely used tablet-binding mechanism. Pharma Grade offer good powder flow, content uniformity, and compressibility, making them well suited for direct compression.

Pharma Excipients Application	Pharma Grade HPMC	Dosage
Bulk Laxative	HPMC K4M,HPMC K100M	3-30%
Creams, Gels	HPMC E4M,HPMC K4M	1-5%
Ophthalmic Preparation	HPMC E50	01.-0.5%
Eye Drops Preparations	HPMC K100	0.1-0.5%
Suspending Agent	60AX4000, 75AX4000	1-2%
Antacids	60AX4000, 75AX4000	1-2%
Tablets Binder	HPMC E5, HPMC E15	0.5-5%
Convention Wet Granulation	HPMC E5, HPMC E15	2-6%
Tablet Coatings	HPMC E4, HPMC E6	0.5-5%
Controlled Release Matrix	HPMC K4M,HPMC K200M	20-55%



4. Features and Benefits:

– Improves product flow characteristics

– Reduces processing times

– Identical, stable dissolution profiles

– Improves content uniformity

– Reduces production costs

– Retains tensile strength after double compaction (roller compaction) process

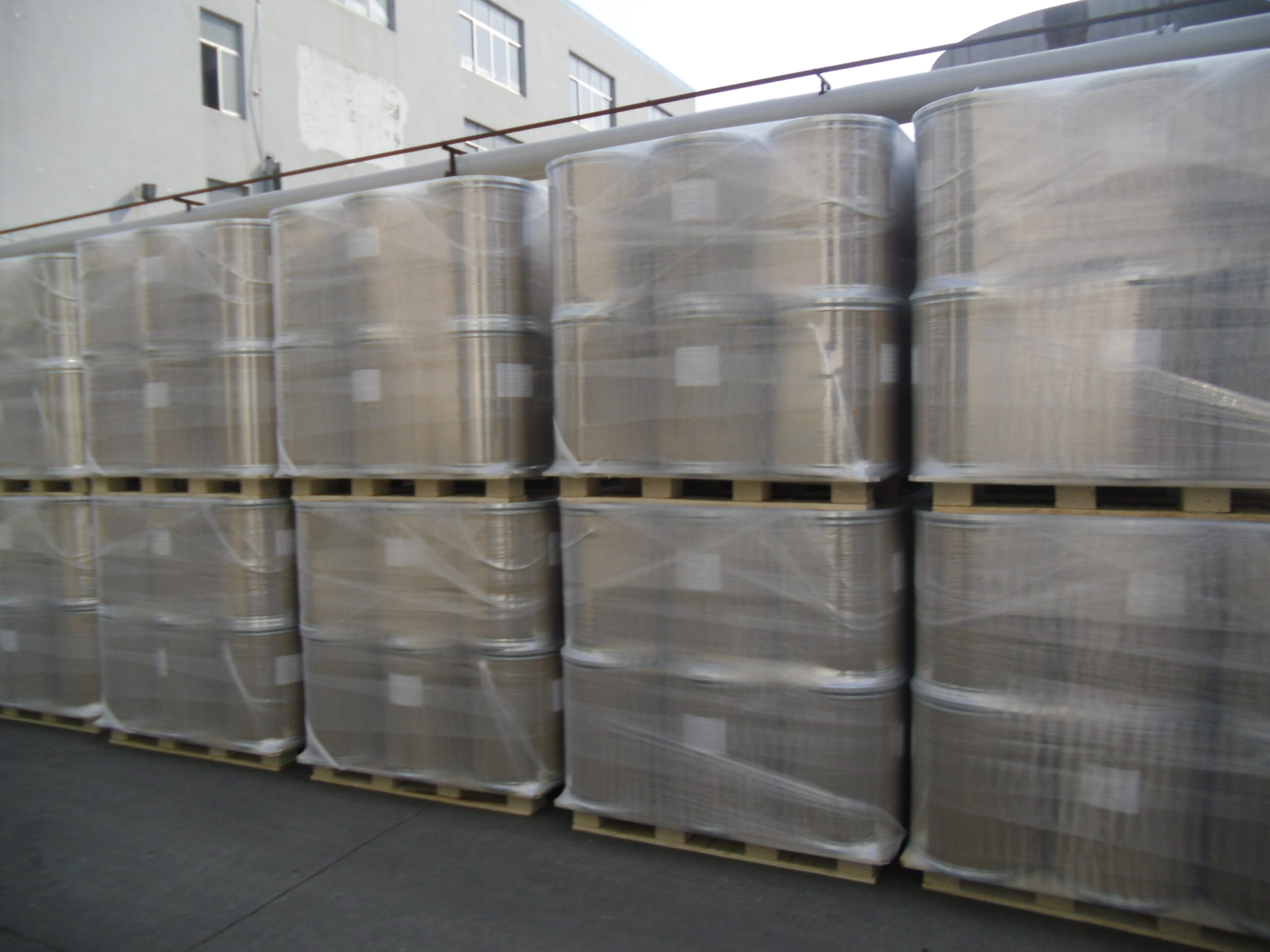

5.Packaging

The standard packing is 25kg/drum

20’FCL: 9 ton with palletized; 10 ton unpalletized.

40’FCL: 18 ton with palletized; 20 ton unpalletized.

Construction Grade Hydroxypropyl Methylcellulose (HPMC):

Hydroxypropyl Methyl Cellulose (HPMC) is also named as MHPC, which is non-ionic cellulose ether, HPMC is a powder of white to off-white color, that function as a thickener, binder, film-former, surfactant, protective colloid, lubricant, emulsifier, and suspension and water retention aid.

Hydroxypropyl Methylcellulose (HPMC) Construction Grade are widely used in Tile adhesives, dry mixed mortar, wall putty, Skim coat,joint filler, self-levelling , cement and gypsum based plaster etc.We can provide both non-modified grade and modified grade HPMC, which has long open time, good water retention, excellent workability and Good slipping resistance etc.

1. Chemical Specification

Specification	E( 2910 )	F( 2906 )	K( 2208 )
Gel temperature (℃)	58-64	62-68	70-90
Methoxy (WT%)	28.0-30.0	27.0-30.0	19.0-24.0
Hydroxypropoxy (WT%)	7.0-12.0	4.0-7.5	4.0-12.0
Viscosity(cps, 2% Solution)	3, 5, 6, 15, 50, 100, 400,4000, 10000, 40000, 60000,100000,150000,200000



2. Product Grade:

Product Grade	Viscosity(NDJ, mPa.s, 2%)	Viscosity(Brookfield, mPa.s, 2%)
HPMC MP400	320-480	320-480
HPMC MP60M	48000-72000	24000-36000
HPMC MP100M	80000-120000	38000-55000
HPMC MP150M	120000-180000	55000-65000
HPMC MP200M	180000-240000	70000-80000



3.Applicationfields:

1）Tile Adhesives

• Better workability: lubricity and plasticity of plaster is ensured, mortar can be applied easier and quicker.
• Good water retention: prolonged opening time will make tiling more efficient.
• Improved adhesion and sliding resistance: especially for heavy tiles.

2）Dry mixed mortar

• Easy dry mix formula due to cold water solubility: lump formation can be easily avoided, ideal for heavy tiles.
• Good water retention: prevention of fluid loss to the substrates, the appropriate water content is kept in mixture which guarantees longer concreting time.

3）Cement/Gypsum based Plaster

• Increased water demand: increased open time, expanded spry area and more economical formulation.
• Easier spreading and improved sagging resistance due to improved consistency.

4）Wall putty/Skimcoat

• Water retention: maximized water content in slurry.
• Anti-sagging: when spreading a thicker coat corrugation can be avoided.
• Increased mortar yield: depending on the weight of the dry mixture and appropriate formulation ,HPMC can increase the mortar volume.

5）Exterior Insulation and Finish System ( EIFS )

• Improved adhesion.
• Good wetting ability for EPS board and substrate.
• Reduced air entrancement and water uptake.

6）Self-leveling

• Protection from water exudation and material sedimentation.
• No effect on slurry fluidity with low viscosity

HPMC, while its water retention characteristics improve the finish performance on the surface.

7）Crack Filler

• Better workability: proper thickness and plasticity.
• Water retention ensures prolonged work time.
• Sag resistance: improved mortar bonding ability.



4.Packaging

The standard packing is 25kg/bag

20’FCL: 12 ton with palletized; 14 ton unpalletized.

40’FCL: 24 ton with palletized; 28 ton unpalletized.



Detergent Grade Hydroxypropyl Methylcellulose (HPMC):

Hydroxypropyl Methylcellulose (HPMC) Detergent Grade is surface treated through unique production process ,it can provide high viscosity with fast disperse and delayed solution. Detergent grade HPMC can be dissolved in cold water quickly and increase excellent thickening effect.

Detergent Grade HPMC	Viscosity(NDJ, mPa.s, 2%)	Viscosity(Brookfield, mPa.s, 2%)
HPMC MP100MS	80000-120000	40000-55000
HPMC MP150MS	120000-180000	55000-65000
HPMC MP200MS	180000-240000	70000-80000



Food Grade Hydroxypropyl Methylcellulose (HPMC):

Food Grade Hydroxypropyl Methylcellulose (HPMC) is a non-ionic water soluble cellulose ether Hypromellose, targeted for the food and dietary supplement applications.

Food grade HPMC products are derived from natural cotton linter and wood pulp, meeting all the requirements of E464 along with Kosher and Halal Certifications.

Food grade HPMC is in compliance with FDA, EU and FAO/WHO guidelines, is manufactured in compliance with GMP standard, retaining FSSC22000 , ISO9001 and ISO14001 certifications .

Package: 25kg paper bags with PE inner ;

25kg/Fiber Drum

Storage:

Keep it in cool dry warehouse,away from moisture, sun,fire,rain.

Anxin Cellulose is a professional HPMC factory for construction grade HPMC,pharmaceutical grade HPMC, food grade HPMC, PVC grade HPMC.
